| 性能數據 | 流量范圍 | 5.2-400m3/h |
| 揚程范圍 | 5-80m | |
| 介質溫度 | -20℃＜T＜+105℃，特殊措施可達175℃ | |
| 環境溫度 | 不超過40℃ | |
| 最高工作壓力 | 泵吸入口壓力+泵揚程≤1.6MPa | |
| 電機數據 | 配套功率 | 1.1-110KW |
| 電壓 | 380V | |
| 頻率 | 50-60HZ | |
| 轉數 | 1450/2900/r/min | |
| 防護等級 | IP54/IP55/IP65 | |
| 絕緣等級 | F | |
| 材料 | 泵體、泵蓋、葉輪 | 不銹鋼 |
| 泵軸 | 不銹鋼 | |
| 機械密封 |

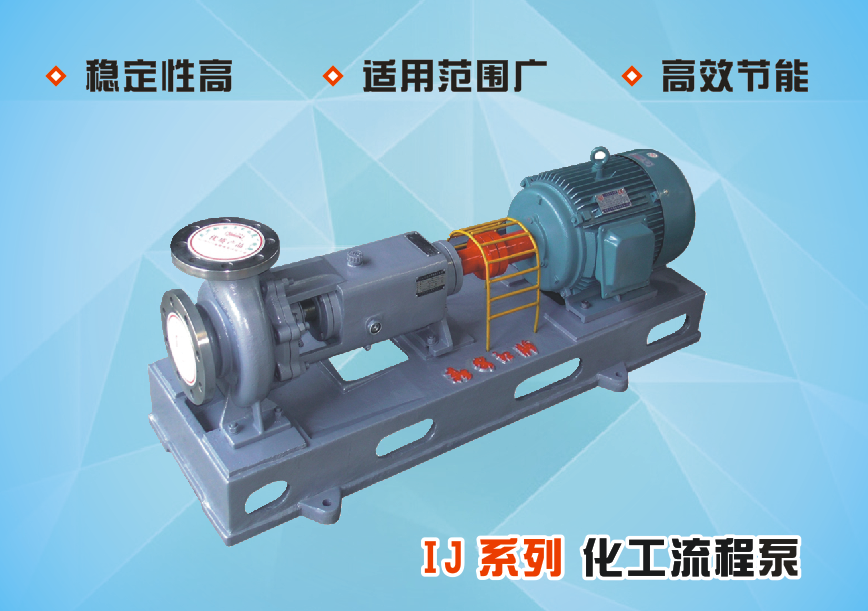

本泵是在IH泵的基礎上升級創(chuàng )新而成的標準化工流程泵，該泵為單級單吸懸架式結構，其性能參數和尺寸均符合GB5662(等效于ISO2858標準)。
IJ系列化工流程泵在設計上，采用了先進的水力模型，具有較高的效率，是節能型產品。在結構設計上借鑒了國際ANSI標準，加粗了軸徑、縮短了懸臂，提高了運行穩定性。
工作溫度可達175℃, 可輸送懸浮物顆粒小于3mm，含固量小于5%的液體。廣泛適用于堿，酸，石化，環保等行業。
IJ — 50－32－160 — A
IJ—— 化工泵系列代號
50—— 進口直徑（50mm）
32—— 出口直徑（32mm）
160—— 葉輪名義直徑(160mm）
A—— 同一型號葉輪經一次切割，參數下降
| 型號/性能參數 | 轉速 | 流 量 | 揚 程 | 電機功率 | ||||||
| 比重 R=1.00 | 比重 R=1.35 | 比重 R=1.84 | ||||||||
| IJ40-25-125 | 2900 | 6 | 20 | Y802-2/1.1 | Y90S-2/1.5 | Y90L-2/2.2 | ||||
| IJ40-25-125A | 2900 | 5.2 | 15 | Y801-2/0.75 | Y802-2/1.1 | Y90S-2/1.5 | ||||
| IJ40-25-160 | 2900 | 6 | 30 | Y90L-2/2.2 | Y100L-2/3 | Y112M-2/4 | ||||
| IJ40-25-160A | 2900 | 5.2 | 26 | Y90S-2/1.5 | Y90L-2/2.2 | Y100L-2/3 | ||||
| IJ50-32-125 | 1450 | 6.3 | 5 | Y801-4/0.55 | Y801-4/0.55 | Y801-4/0.55 | ||||
| IJ50-32-125 | 2900 | 12.5 | 20 | Y90S-2/1.5 | Y90L-2/2.2 | Y100L-2/3 | ||||
| IJ50-32-125A | 2900 | 11.3 | 16.2 | Y90S-2/1.5 | Y90S-2/1.5 | Y90L-2/2.2 | ||||
| IJ50-32-160 | 1450 | 6.3 | 8 | Y801-4/0.55 | Y801-4/0.55 | Y802-4/0.75 | ||||
| IJ50-32-160 | 2900 | 12.5 | 32 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | ||||
| IJ50-32-160A | 2900 | 11.2 | 26 | Y90L-2/2.2 | Y100L-2/3 | Y112M-2/4 | ||||
| IJ50-32-200 | 1450 | 6.3 | 12.5 | Y802-4/0.75 | Y90S-4/1.1 | Y90L-4/1.5 | ||||
| IJ50-32-200 | 2900 | 12.5 | 50 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | ||||
| IJ65-50-125 | 1450 | 12.5 | 5 | Y801-4/0.55 | Y801-4/0.55 | Y802-4/0.75 | ||||
| IJ65-50-125 | 2900 | 25 | 20 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | ||||
| IJ65-50-125A | 2900 | 22.5 | 16 | Y90L-2/2.2 | Y100L-2/3 | Y112M-2/4 | ||||
| IJ60-50-160 | 1450 | 12.5 | 8 | Y802-4/0.75 | Y90S-4/1.1 | Y90S-4/1.1 | ||||
| IJ65-50-160 | 2900 | 25 | 32 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | ||||
| IJ65-50-160A | 2900 | 22.5 | 26 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | ||||
| IJ65-40-200 | 1450 | 12.5 | 12.5 | Y90S-4/1.1 | Y90L-4/1.5 | Y100L-4/2.2 | ||||
| IJ65-40-200 | 2900 | 25 | 50 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | ||||
| IJ80-65-125 | 1450 | 25 | 5 | Y802-4/0.75 | Y90S-4/1.1 | Y90S-4/1.1 | ||||
| IJ80-65-125 | 2900 | 50 | 20 | Y132S1-2/5.5 | Y132S1-2/5.5 | Y132S2-2/7.5 | ||||
| IJ80-65-125A | 2900 | 46.5 | 17.3 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | ||||
| IJ80-65-160 | 1450 | 25 | 8 | Y90S-4/1.1 | Y90L-4/1.5 | Y100L1-4/2.2 | ||||
| IJ80-65-160 | 2900 | 50 | 32 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | ||||
| IJ80-65-160A | 2900 | 46 | 28 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M1-2/11 | ||||
| IJ80-50-200 | 1450 | 25 | 12.5 | Y100L1-4/2.2 | Y100L1-4/2.2 | Y100L2-4/3 | ||||
| IJ80-50-200 | 2900 | 50 | 50 | Y160M1-1/11 | Y160M2-2/15 | Y180M-2/22 | ||||
| IJ100-80-125 | 1450 | 50 | 5 | Y90L-4/1.5 | Y100L1-4/2.2 | Y100L2-4/3 | ||||
| IJ100-80-125 | 2900 | 100 | 20 | Y160M1-2/11 | Y160M2-2/15 | Y160L-2/18.5 | ||||
| IJ100-80-125A | 2900 | 93 | 17.3 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | ||||
| IJ100-80-160 | 1450 | 50 | 8 | Y100L1-4/2.2 | Y100L2-4/3 | Y112M-4/4 | ||||
| IJ100-80-160 | 2900 | 100 | 32 | Y160M2-2/15 | Y160L-2/18.5 | Y200L1-2/30 | ||||
| IJ100-80-160A | 2900 | 93 | 28 | Y160M1-2/11 | Y160M2-2/15 | Y160L-2/18.5 | ||||
| IJ100-80-200 | 1450 | 75 | 12.5 | Y112M-4/4 | Y132M-4/5.5 | Y132M-4/7.5 | ||||
| IJ100-80-200 | 2900 | 150 | 50 | Y200L1-2/30 | Y225M-2/45 | Y250M-2/55 | ||||
| IJ100-65-200 | 1450 | 50 | 12.5 | Y100L2-4/3 | Y112M-4/4 | Y132S-4/5.5 | ||||
| IJ100-65-200 | 2900 | 100 | 50 | Y180M-2/22 | Y200L1-2/30 | Y225M-2/45 | ||||
| IJ125-80-200 | 2900 | 150 | 50 | Y200L1-2/30 | Y225M-2/45 | Y250M-2/55 | ||||
| IJ125-100-250 | 1450 | 100 | 20 | Y160M-4/11 | Y160M-4/11 | Y160L-4/15 | ||||
| IJ125-100-250 | 2900 | 200 | 80 | Y280S-2/75 | Y280M-2/90 | Y315S-2/110 | ||||
| IJ150-125-250 | 1450 | 200 | 20 | Y180M-4/18.5 | Y180L-4/22 | Y200L-1/30 | ||||
| IJ175-150-250 | 1450 | 300 | 20 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 | ||||
| IJ200-150-250 | 1450 | 400 | 20 | Y200L-4/30 | Y225S-4/37 | Y225M-4/55 | ||||
